Why LisRT V3?

modular system -

easily extendable

Thanks to the consistent modularization, LisRT V3 can be used quickly and flexibly. Adding a new function is easy and uncomplicated.

LisRT V3 Basic module

We used our extensive experience in measurement technology and programming to develop this concept, which covers all requirements on flexibility, functionality and basic functions.

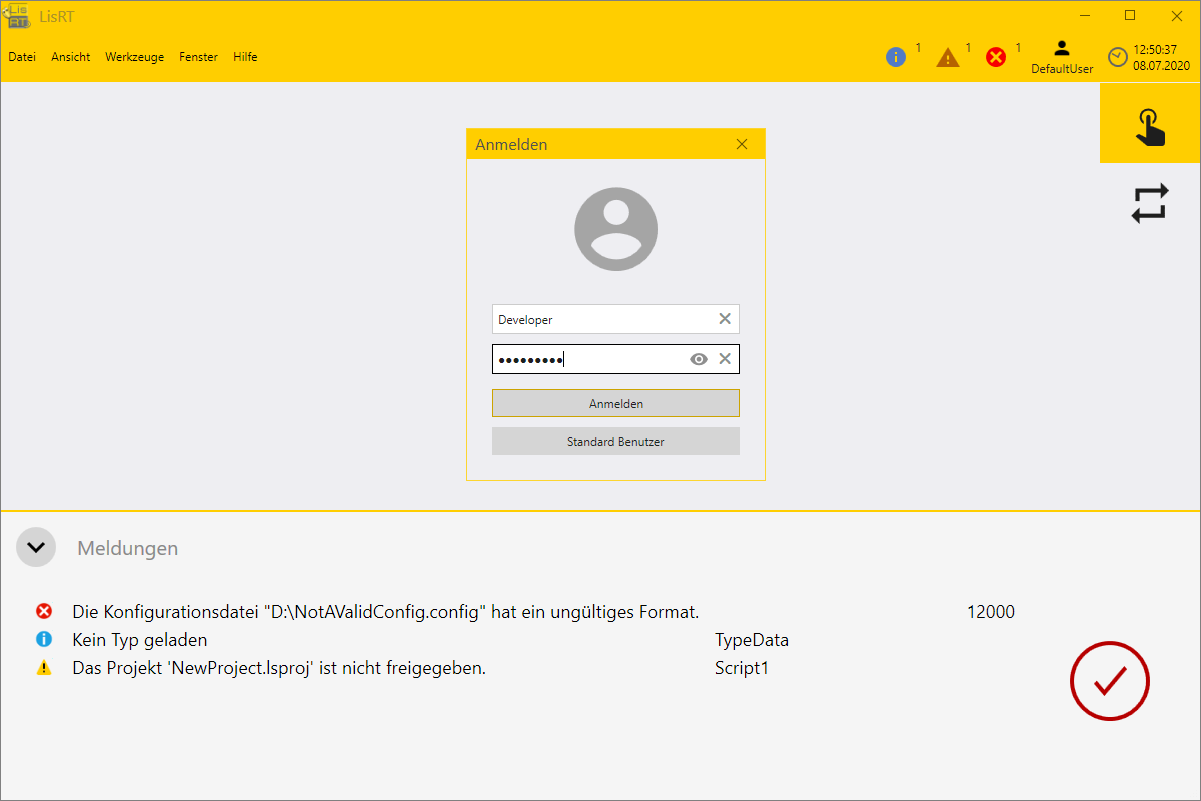

User Interface

The LisRT V3 User Interface is based upon modern, scalable WPF technology. For intuitive use, we have completely redesigned the interface in a modern way. All functions are structured and integrated into a user-friendly interface.

User administration

User administration can be adapted individually so that workers, operators, service and R&D staff can freely define access or avoid unintended use. This makes maintenance easier and improves availability of the application.

Logging

Using the free Logging-Framework NLog, logs can be created and filtered at any time depending on the development phase and requirement.

Operating modes

The integrated operating modes concept was designed for many different applications and provides the right solution to all of your requirements.

Multilingual

LisRT is multilingual. This allows the user interface language to be switched without having to restart. It is possible to implement any language.

Platform

Based on Microsoft Windows and developed with .NET Framework you have a stable and approved system with worldwide acceptance.

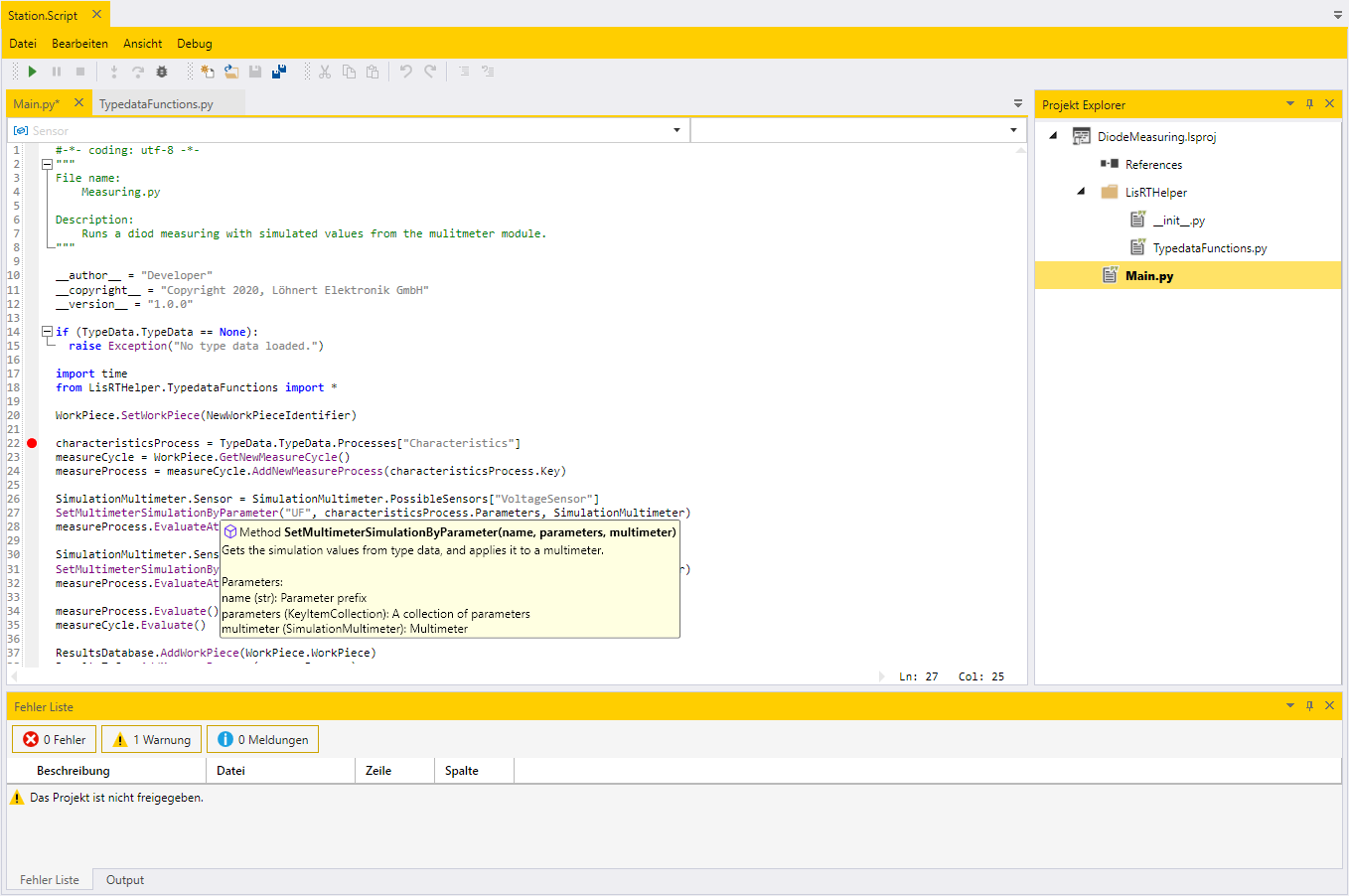

ScriptEditor

The ScriptEditor is the core of all modules. It enables you to adapt the process flow exactly to your requirements. The simple handling of the powerful programming lan-guage Python makes it easy for you to implement all your processes and work flows.

Needless to say, the ScriptEditor may also be used as a sequencer.

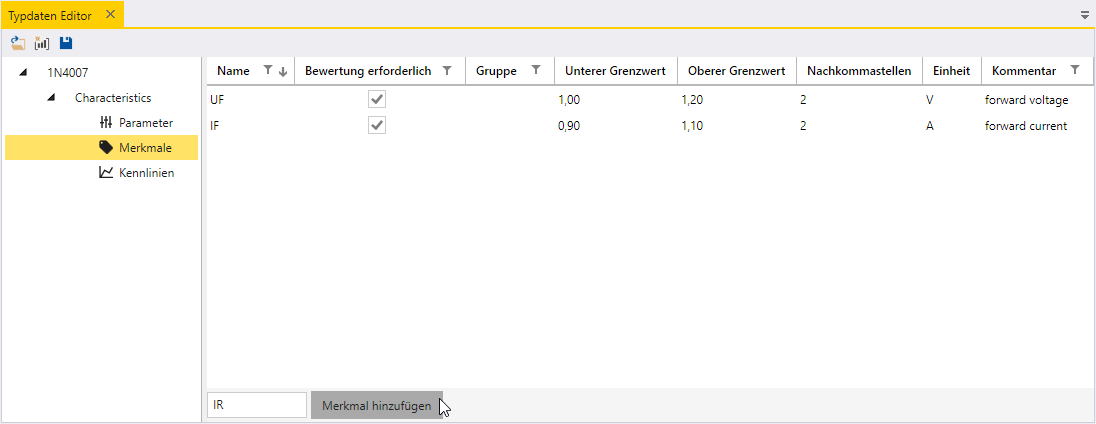

Type management

Based upon the type variance common in automation technology we implemented an individually extendable type editor and a handy type management. Hence we provide you with each possibility to extend types and define new type indicators. The open design of our software allows any individual adjustment.

Further available modules

Below you find a list of available modules including some hardware modules that have already been implemented.

Loehnert.Drive

Loehnert.IO

Loehnert.Lisrt.Can.Protocol

Loehnert.Lisrt.Can.VSCom

Loehnert.Lisrt.Can.Vector

Loehnert.Lisrt.Communication.Modbus

Loehnert.Lisrt.Communication.Visa

Loehnert.Lisrt.Communication

Loehnert.Lisrt.Drive.Festo

Loehnert.Lisrt.Drive.Igus

Loehnert.Lisrt.Drive.Jat

Loehnert.Lisrt.DummyPart

Loehnert.Lisrt.ForwardVoltageTester.Schuster

Loehnert.Lisrt.Hbm_64

Loehnert.Lisrt.Hbm_86

Loehnert.Lisrt.HighVoltageTester.Elabo

Loehnert.Lisrt.IO.Adjustment

Loehnert.Lisrt.IO.Beckhoff

Loehnert.Lisrt.IO

Loehnert.Lisrt.Laser.Keyence

Loehnert.Lisrt.LaserProfiler.Keyence

Loehnert.Lisrt.Modules

Loehnert.Lisrt.Multimeter

Loehnert.Lisrt.Mux.Schuster

Loehnert.Lisrt.Opc

Loehnert.Lisrt.Plc.Automation
Loehnert.Lisrt.Plc.Automation.Siemens
Loehnert.Lisrt.Plc.Pilz
Loehnert.Lisrt.Plc.Siemens

Loehnert.Lisrt.ResistanceMeasurement.Burster
Loehnert.Lisrt.PowerSupply
Loehnert.Lisrt.RohdeSchwarz.Qar

Loehnert.Lisrt.Scanner.Datalogic
Loehnert.Lisrt.Scope.Pico
Loehnert.Lisrt.Scripting

Loehnert.Lisrt.Scanner

Loehnert.Lisrt.Scripting.PythonAutoComplete

Loehnert.Lisrt.TemperatureController.Lauda

Loehnert.Lisrt.Type.Provider.Json

Loehnert.Lisrt.Type.Provider.Xml

Loehnert.Lisrt.TypeAndResult.Database

Loehnert.Lisrt.TypeAndResult

Loehnert.Lisrt

Loehnert.Open62541 (OPC UA)

Loehnert.Plc

Loehnert.Report

Loehnert.S7.Net

Loehnert.TypeAndResult.Database

Loehnert.TypeAndResult

Loehnert.Utility
